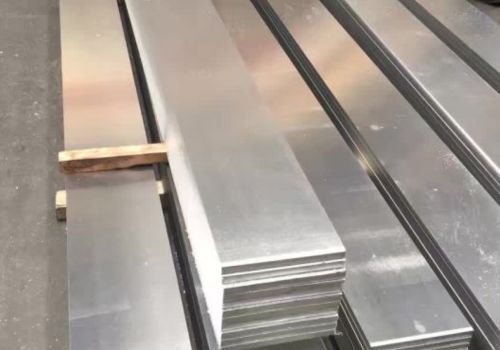

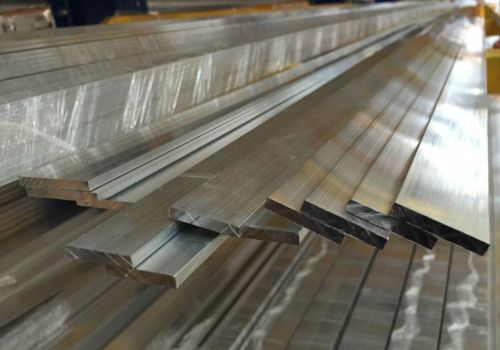

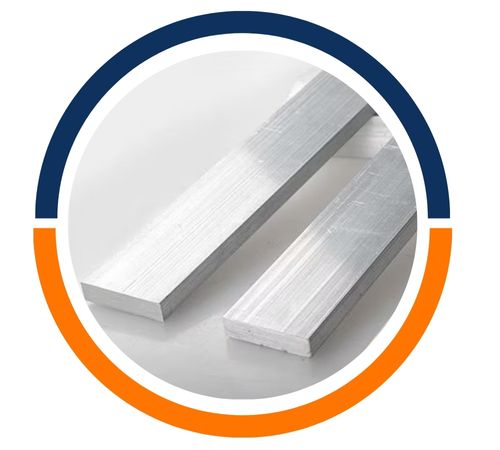

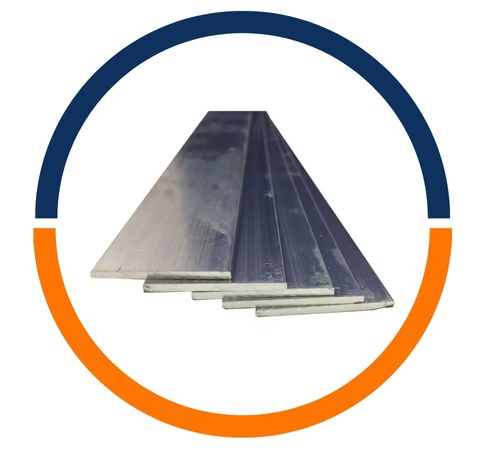

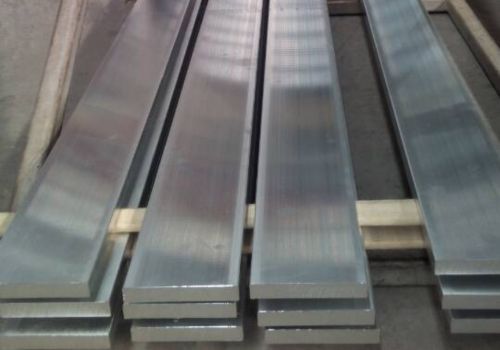

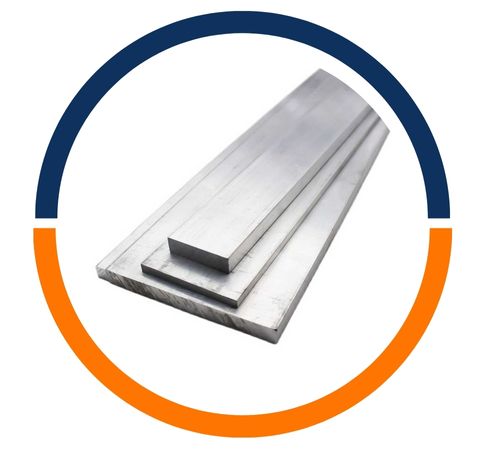

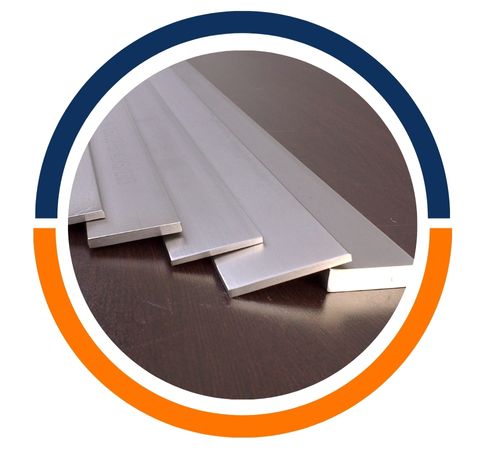

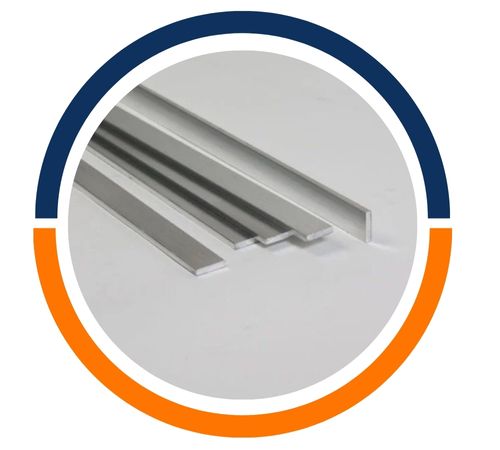

For over a decade, Haider Aluminium has been a trusted name in Addis Ababa, supplying top-tier materials to Ethiopia’s growing industries. We understand the critical need for durable and reliable components, which is why we are proud to offer Aluminium 2024 Flat Bars. This high-strength alloy is a cornerstone for projects where performance and resilience are non-negotiable, providing the essential backbone for everything from major construction to advanced machinery, ensuring your work is built on a foundation of quality.
Aluminium 2024 is primarily composed of copper, which gives it exceptional strength. This alloy is renowned for its impressive mechanical properties, particularly its high strength-to-weight ratio. While it is not typically used for welding, it excels when joined with rivets. It is naturally hard and offers excellent fatigue resistance, making it a fantastic choice for high-stress applications. It’s important to note that for optimal performance in corrosive environments, these flat bars often benefit from a protective cladding or coating.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Aluminium 2024 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.50 | 0.50 | 1.20 – 1.80 | 0.30 – 0.90 | 3.8 – 4.9 | 0.25 | 0.15 | 93.5 |
| Typical Mechanical Properties (Min) | |||
| Diameter or minor sectional dimension mm | Tensile Strength, MPa | Yield Strength 0.2%, MPa | Elongation % |
| 0-12.7 | 427 | 310 | 10 |
| 12.7-114.30 | 427 | 290 | 10 |
| 114.30-165.1 | 427 | 276 | 10 |
| 165.1-203.2 | 400 | 262 | 10 |
| STANDARD | UNS | WERKSTOFF NR. | European Standard | BS (OLD) | ISO | USA (AA) | GERMANY (DIN) |
| Aluminium 2024 | A92024 | 3.1355 | AW-AlCu4Mg1 | AU4G1 | AlCu4Mg1 | 2024 | AlCuMg2 |
Haider Aluminium based in Addis Ababa, Ethiopia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 2024 Flat Bars to meet specific project needs. Our team at Haider Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@haideraluminium.com
The remarkable strength of Aluminium 20204 Flat Bars makes them indispensable in demanding sectors. They are extensively used in the aerospace industry for aircraft structures, including wings and fuselage frames. Beyond aviation, these bars are vital in high-performance automotive parts, such as suspension components and gears. In heavy machinery and transportation, they form the backbone of robust frames and structural supports, proving essential anywhere a combination of light weight and superior strength is required to ensure safety and longevity.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
