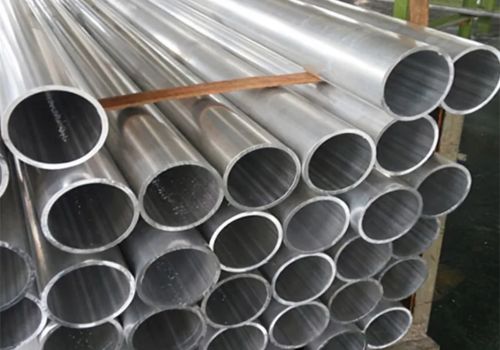

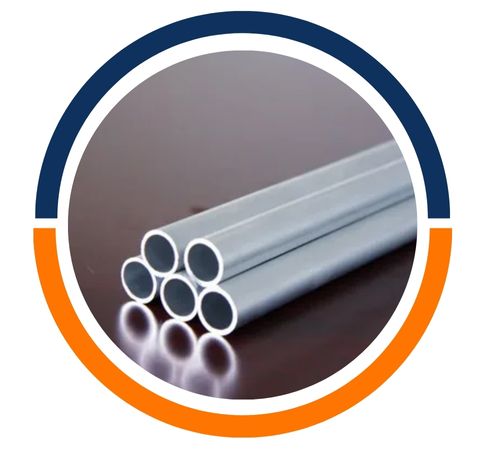

Aluminium Seamless Pipes are expertly crafted hollow cylinders made from top-notch aluminium alloys, designed without any welded seams. This unique construction guarantees impressive strength and leak-proof performance. These pipes are celebrated for being lightweight, resistant to corrosion, and having excellent thermal conductivity. Thanks to advanced extrusion techniques, Aluminium Seamless Pipes boast remarkable dimensional accuracy and smooth interiors, which facilitate efficient fluid and gas flow. They find extensive applications in various industries, including aerospace, marine, automotive, chemical, and power generation. Their durability, flexibility, and ease of fabrication make them perfect for both structural and fluid transfer needs
Aluminium Seamless Pipes are mainly made of aluminium, with carefully controlled amounts of magnesium, silicon, copper, and manganese added to boost their strength and resistance to corrosion. They showcase impressive mechanical properties, featuring a tensile strength ranging from 150 to 320 MPa, a low density of 2.7 g/cm³, and exceptional thermal and electrical conductivity. These pipes are non-magnetic, lightweight, and easy to machine, making them ideal for high-performance applications. Depending on the alloy grade and heat treatment, Aluminium Seamless Pipes provide excellent weldability, pressure resistance, and stable performance across different temperatures and environmental conditions
Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Standard : AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
ASTM B241 / ASME SB241 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipes
ASTM B345 / ASME S345 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipe for Gas and Oil Transmission and Distribution Piping Systems
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Pipe
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Piping
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
Haider Aluminium based in Addis Ababa, Ethiopia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium Seamless Pipes to meet specific project needs. Our team at Haider Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@haideraluminium.com
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Aluminium Seamless Pipes are commonly utilized in the aerospace and automotive sectors for fuel lines, hydraulic systems, and heat exchangers, thanks to their strength-to-weight ratio. In the marine industry, they are used for piping systems that can withstand saltwater corrosion. Additionally, they serve in the chemical and petrochemical fields for transporting gases and fluids under pressure. The construction and architectural industries also make use of these pipes for railings, supports, and frameworks. Their outstanding thermal conductivity further enhances their appeal across various applications.
